Model Capacity Rinsing heads Filling heads Sealing heads Overall dimensions
CGF18-18-6BD 4000BPH 18 18 6 2800*2050*2200mm
CGF24-24-8BD 6000BPH 24 24 8 3100*2450*2800mm
CGF32-32-10BD 9000BPH 32 32 10 3700*2750*2900mm
CGF40-40-10BD 10000BPH 40 40 10 4300*3300*2900mm
Machine suitable bottle : glass bottle suitable cap : Iron crown cap
Suitable beverage : Cola,carbonated drink,gas water
Product Description:

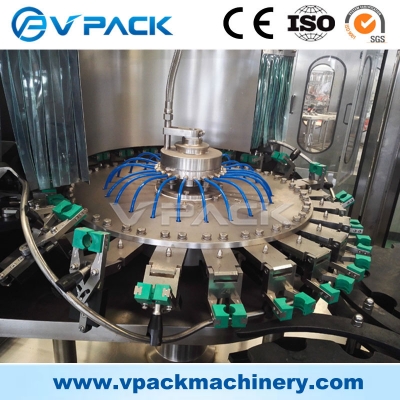

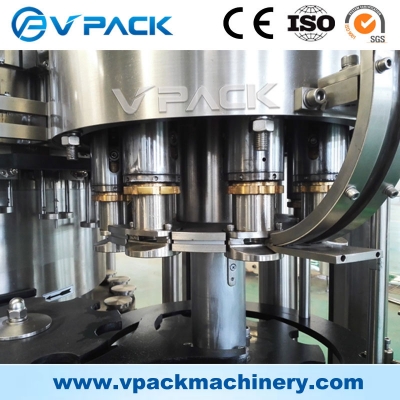

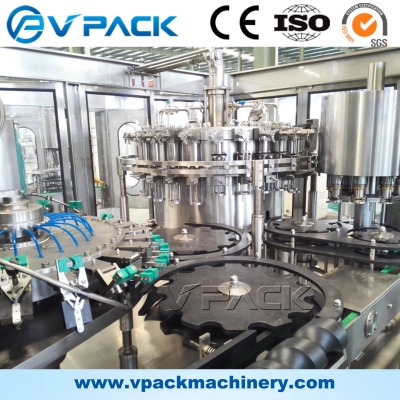

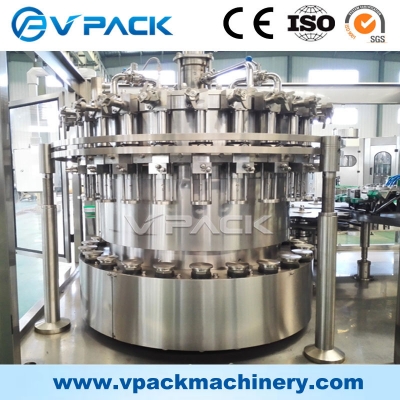

The CGF-BD washing, filling, capping machine 3 in 1 is design for glass bottle and in iron crown cap.
The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectric inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
