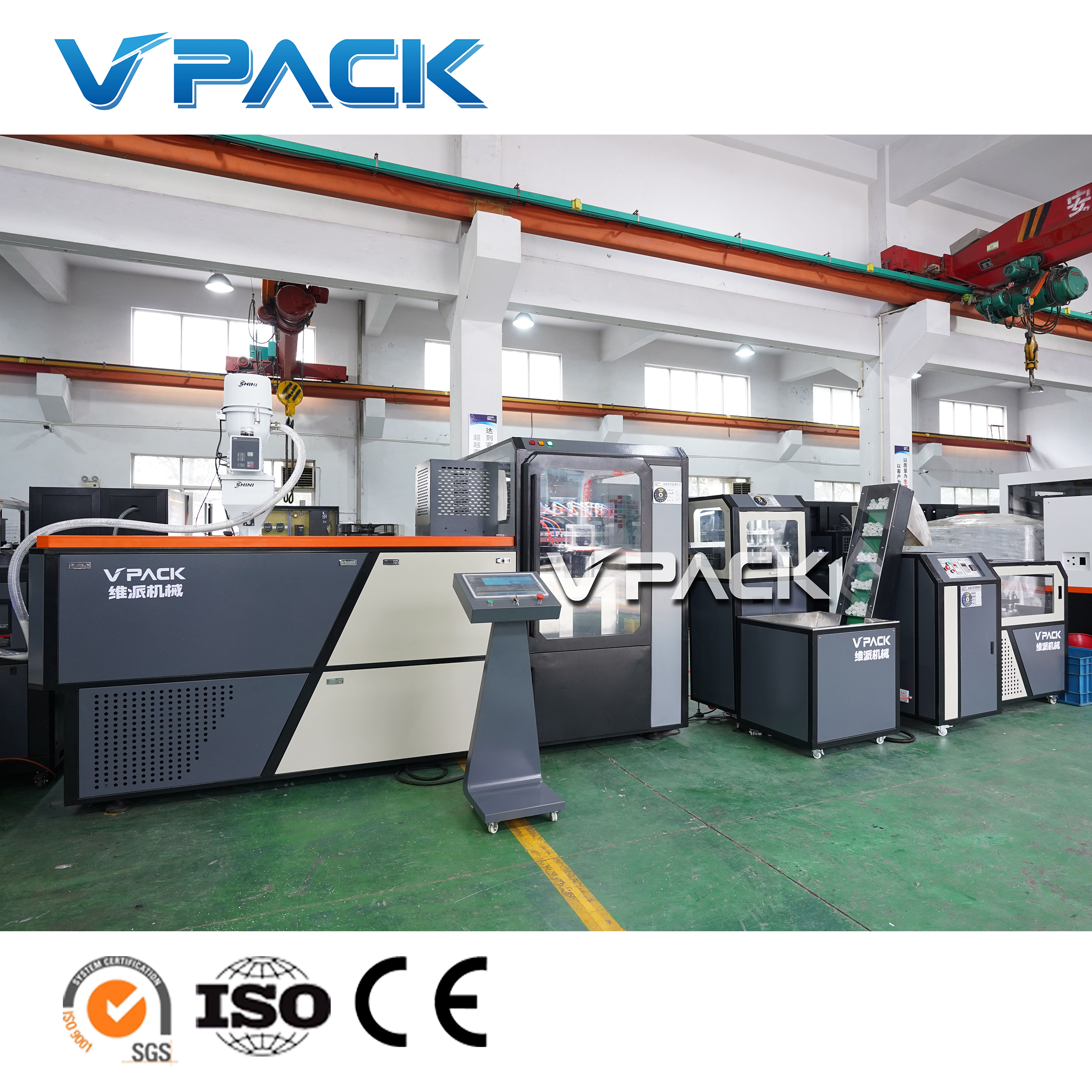

Cap compression machine Cap compression machine

Share this:
  • Product Details

Technical Parameter :

Model : VPK-ZG-0024

Production capacity : 20000-24000 pcs/hour ( 30/25   29/25 cap )

                                   18000-19000 pcs/hour ( 1881  28mm  cap )

Cap diameter :  20 - 35 mm

Cap height : 10 - 30mm

Cap material : PP/HDPE/LDPE

Mold cavity No.:  24 pcs

Machine Volatge : 380 V / 50HZ / 3P , or by order

Machine electric power : 50kw

Air consumption : 1.4M3 / H , 1.0Mpa

Machine dimension : 3800 * 1550 *2100mm

Machine weight : 5800kg


×
