Model Capacity Rinsing heads Filling heads Sealing heads Overall dimensions
RCGF14-12-4 3000BPH 14 12 4 2400*1900*2800mm
RCGF16-16-5 4000BPH 16 16 5 2500*1900*2200mm
RCGF18-18-6 6000BPH 18 18 6 2800*2050*2200mm
RCGF24-24-8 8000BPH 24 24 8 3100*2450*2800mm
RCGF32-32-10 12000BPH 32 32 10 3700*2750*2900mm
RCGF40-40-10 15000BPH 40 40 10 4300*3300*2900mm
RCGF50-50-12 18000BPH 50 50 12 5200*3700*2900mm
RCGF60-60-15 22000BPH 60 60 15 6300*4400*2900mm

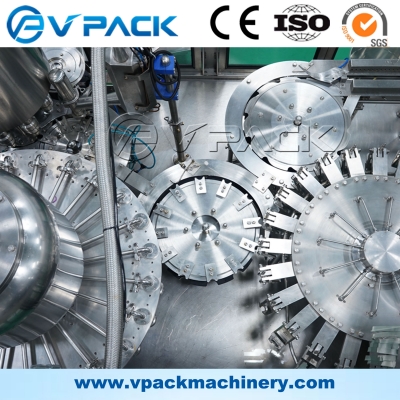

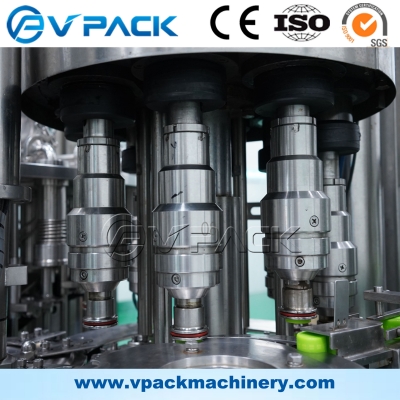

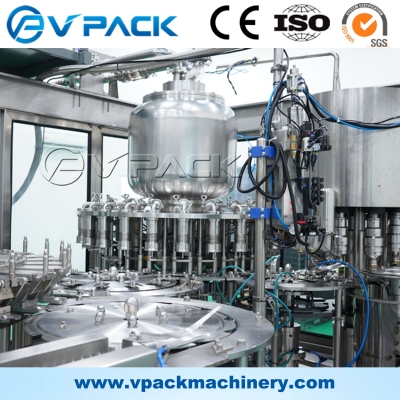

RCGF series 3-in-1 set of machine is mainly used in the beverage filling process. The machine combines washing, filling and capping with complete automation, suitable for filling juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling process adopts hot filling technology with water-supplying system under constant pressure, which makes filling process faster and more stable. Compared with other equipment of same kind, this machine with a better quality and thus enjoys a high ratio of function against price. The hot filling type machine works with balanced tank and vacuum system.
The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectric inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
