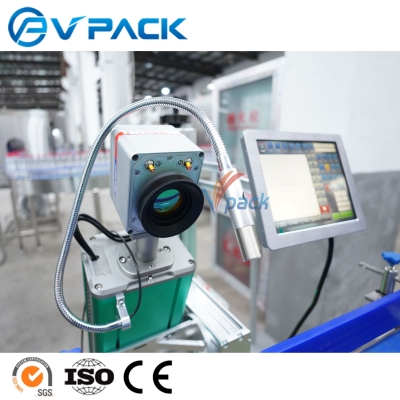

CO2 Laser printer Feature
(1)High speed running

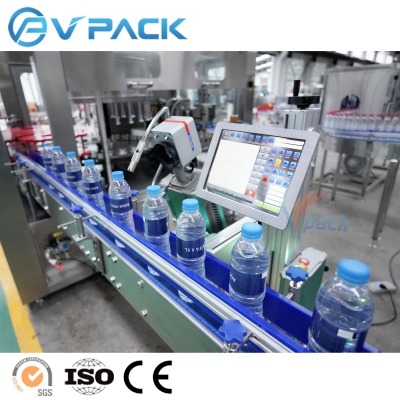

The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.
(2)High quality accessories
Laser heads need not be cleaned,not will they age or be replaced over time.
(3)Powerful functions
It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality
laser printing effect.
(4) Permanent marking
Ink spray codes may be scratched or erased,but laser jet codes are permanent.

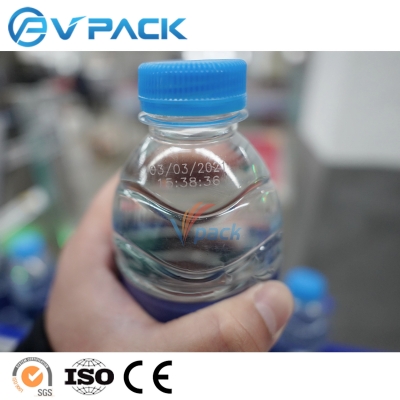

(5) laser print words very clear
Machine configuration instructions

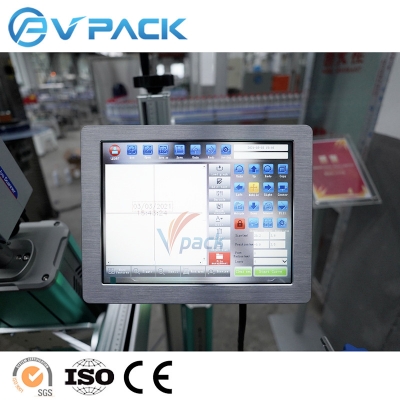

Laser: touch screen version(10w,Wave length 9.3,increase by 1000)
Vibrating mirror : Digital,analog mirror.
Field mirror:Singapore brand
Power: Taiwan brand
Encoder : Japanese OMRON.
Technical parameter
Model: C-C010H
Marking parameter :
Trigger mode : Mouse,keyboard,foot switch,timming trigger,photoelectric induction；
Marking area: 110*110mm
Work distance : 139+-2mm
Marking speed : standard model < 7000mm/s
Words height : 0.5mm-100mm
Precision:0.01mm
Minimum line width :0.05mm
Laser performance :
Laser :Metal RF tube laser
Laser wave length : 10.6um
Output power :10w
power stability (8h):< 1% rms.
Beam quality M2:<3.
Laser safety degree : Class IV
